CLASSIFICATION
PRODUCT MODEL:S-03F-12
S-03F-12
PRODUCT SPECIFICATION:
Rating: 10A 250VAC (ENEC K-MARK)
10A 250VAC (CCC)
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Fuse:5.0x20mm
MATERIAL:
Base: PA66;
Cap: PA66;
10A 250VAC (CCC)
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Fuse:5.0x20mm
MATERIAL:
Base: PA66;
Cap: PA66;
Terminal:Copper alloy,Tin plated
Application：
Circuit overload Protection電路過載保護(hù)
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

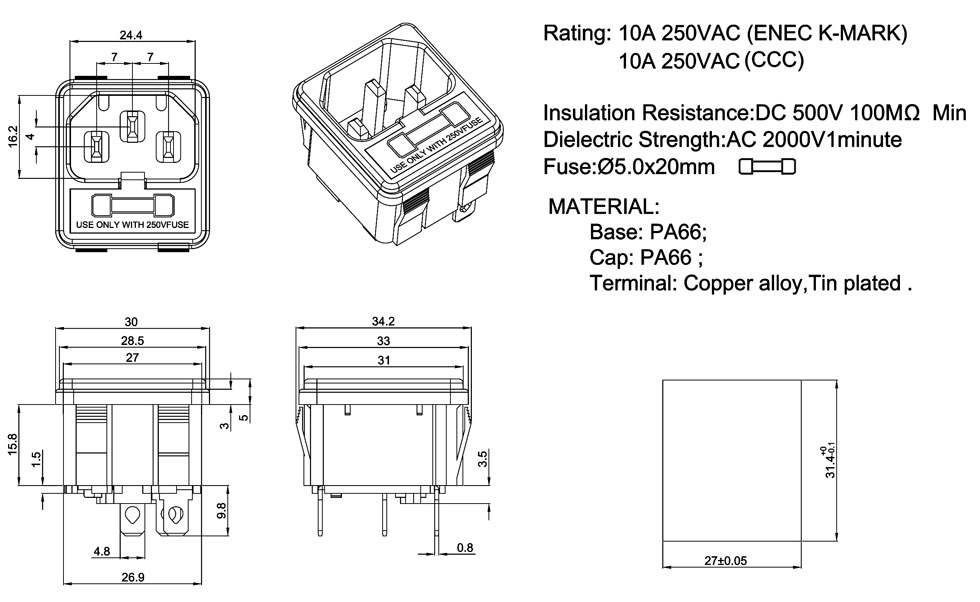

DRAWING
ORDER CODING DIAGRAM
