CLASSIFICATION
PRODUCT MODEL:FH15-209(6×30mm)
FH15-209(6×30mm)
PRODUCT SPECIFICATION:
Fuse holder for overload protection
Rating: 15A 250VAC
Operating Temperature:-20℃~+85℃
Dielectric Strength For: 2000V AC/1min
lnsulation Resistance: DC 500V 100MΩ min
Fuse:Φ6.0x30mm.
Wire: X#AWG UL 1015 105°
Welding method:Manual Soldering (350°C±5°C,3s±0.5s)
Rating: 15A 250VAC
Operating Temperature:-20℃~+85℃
Dielectric Strength For: 2000V AC/1min
lnsulation Resistance: DC 500V 100MΩ min
Fuse:Φ6.0x30mm.
Wire: X#AWG UL 1015 105°
Welding method:Manual Soldering (350°C±5°C,3s±0.5s)
Application：
Circuit overload Protection電路過載保護(hù)
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

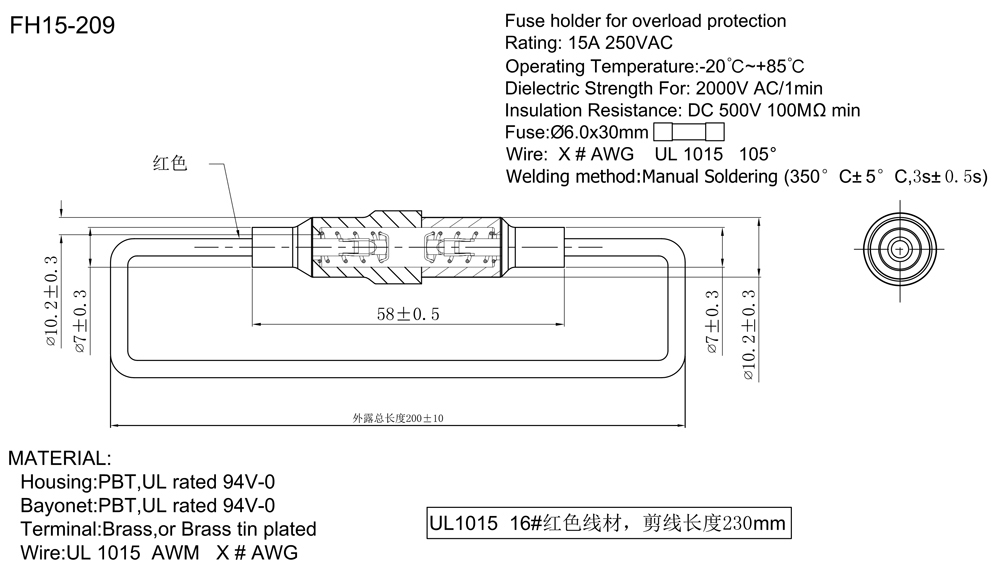

DRAWING
ORDER CODING DIAGRAM
