CLASSIFICATION
PRODUCT MODEL:FH10-208(5×20mm)
FH10-208(5×20mm)
PRODUCT SPECIFICATION:
Rated Current: 10A
Insulation Resistance At 500 V DC: 100MΩ Min
Contact Resistance: 50mΩ
Dielectric Strength For 60 Seconds: AC2000V Min.
Body Material: P.B.T
UL Wire-AWG/Length: 18#AWG / 8"Loop
Fuse Holder : For 5x20mm Fuses
Application：
Circuit overload Protection電路過載保護(hù)
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

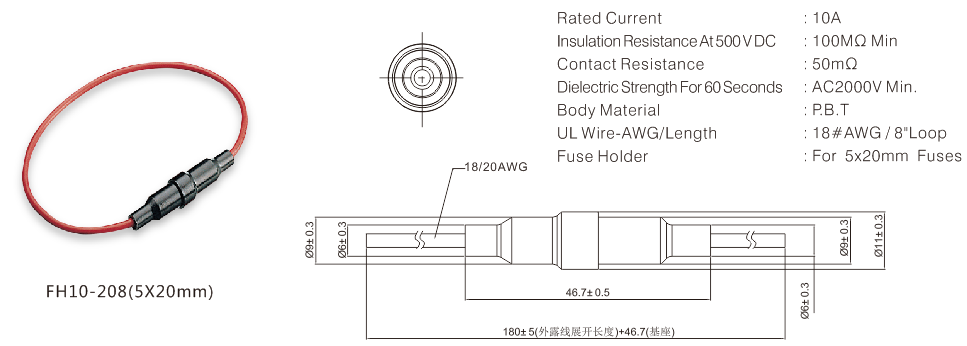

DRAWING

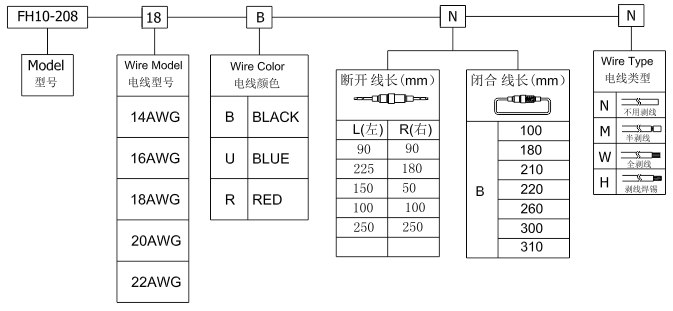

ORDER CODING DIAGRAM
