CLASSIFICATION
PRODUCT MODEL:LR-210-C5N-BR
LR-210-C5N-BR
PRODUCT SPECIFICATION:
Rating:20A 125VAC
22A 250VAC ( CQC ENEC)
Degree of protction:IP55
Contact Resistance:20mΩ(Max)
Insulation Resistance:DC 500V 100MΩ (Min)
Dielectric Strength:AC 1500V 1 minute
Operating Force:500±200gf
Mechanical Life:50,000cycles
Load Life:10,000cycles
Operating Temperature:-40°C~85°C
Application：
Computer Peripherals 電腦外設(shè)
Telecommunications network 電信網(wǎng)絡(luò)
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業(yè)自動化

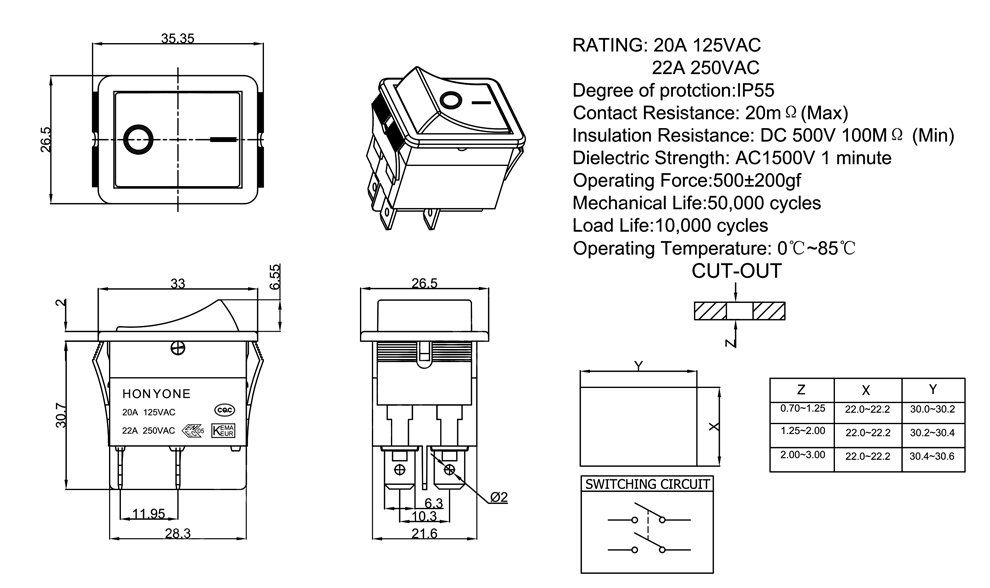

DRAWING
ORDER CODING DIAGRAM
