CLASSIFICATION
PRODUCT MODEL:X6-2706-A3M2
X6-2706-A3M2
PRODUCT SPECIFICATION:
Specification :
Contact resistance: 20m2 max. (initial)
Insulation resistance: 100MQ min. (at 500V DC)
Dielectric strength: 1 ,500V AC 50/60 Hz for 1 minute
Service life: Mechanically: 100,000 operations min.
Electrically: 30,000 operations min.
Rating: 15 A 12 Vdc or 125 Vac
10 A 24 Vdc or 250Vac
Function: .(ON)OFF一(ON)_DPDT
Contact resistance: 20m2 max. (initial)
Insulation resistance: 100MQ min. (at 500V DC)
Dielectric strength: 1 ,500V AC 50/60 Hz for 1 minute
Service life: Mechanically: 100,000 operations min.
Electrically: 30,000 operations min.
Rating: 15 A 12 Vdc or 125 Vac
10 A 24 Vdc or 250Vac
Function: .(ON)OFF一(ON)_DPDT
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網(wǎng)絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業(yè)自動化

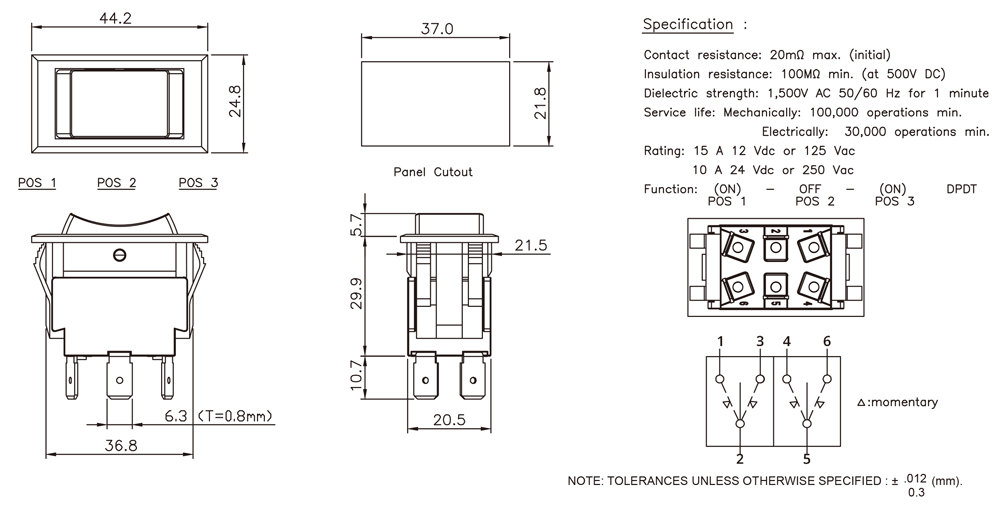

DRAWING

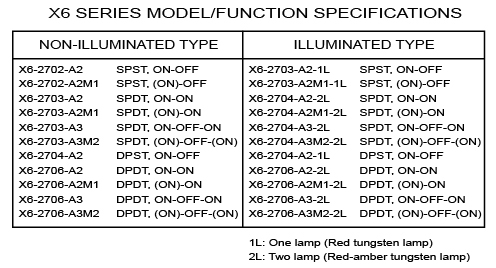

ORDER CODING DIAGRAM
