CLASSIFICATION
PRODUCT MODEL:WR-5A-210-P5L-BR
WR-5A-210-P5L-BR
PRODUCT SPECIFICATION:
Rating: 12A 125V AC;
10A 250V AC(ENEC CQC) ;
Contact Resistance: 20mΩ Max. ;
Insulation Resistance:DC 500V 100MΩ Min. ;
Dielectric Strength:AC 1500V 1 minute
Operating Force:450±200gf
Mechanical Life:50,000 cycles
Load Life:10,000 cycles
Operating Temperature: -20°C~+85"C
Protection type depending on mounting: IP65
10A 250V AC(ENEC CQC) ;
Contact Resistance: 20mΩ Max. ;
Insulation Resistance:DC 500V 100MΩ Min. ;
Dielectric Strength:AC 1500V 1 minute
Operating Force:450±200gf
Mechanical Life:50,000 cycles
Load Life:10,000 cycles
Operating Temperature: -20°C~+85"C
Protection type depending on mounting: IP65
Application：
Computer Peripherals 電腦外設(shè)
Telecommunications network 電信網(wǎng)絡(luò)
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業(yè)自動化

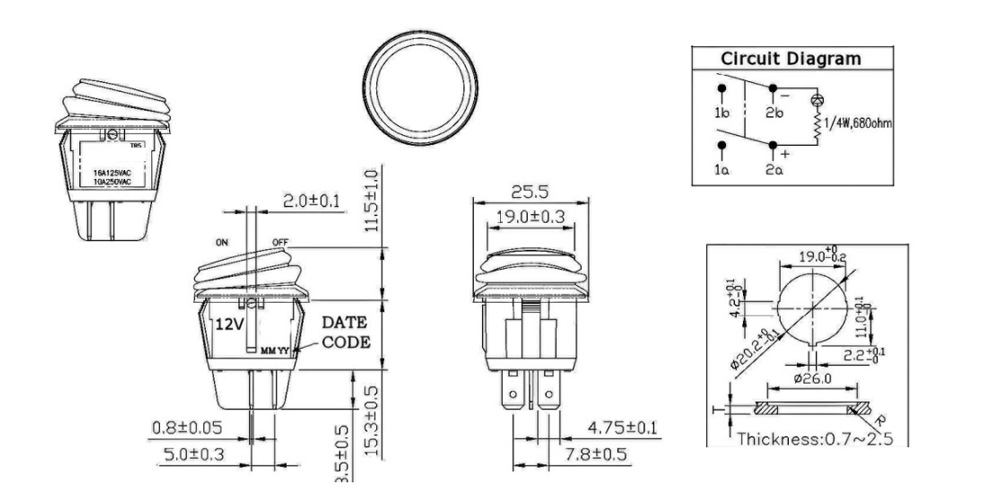

DRAWING
ORDER CODING DIAGRAM
