CLASSIFICATION
PRODUCT MODEL:MR-7-110-C5L-BR-110
MR-7-110-C5L-BR-110
PRODUCT SPECIFICATION:
Rating: 12A 125VAC
10A 250VAC(CQC / ENEC/CB)
Contact Resistance: 50mΩmax
Insulation Resistance: DC 500V 100M Ω min
Dielectric Strength: AC 1500V 1 minute
Operating Force:350±100gf
Mechanical Life: Over 50,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20° C~ +85° C
Functlon: OFF-(ON)
10A 250VAC(CQC / ENEC/CB)
Contact Resistance: 50mΩmax
Insulation Resistance: DC 500V 100M Ω min
Dielectric Strength: AC 1500V 1 minute
Operating Force:350±100gf
Mechanical Life: Over 50,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature: -20° C~ +85° C
Functlon: OFF-(ON)
Safety Approval
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化

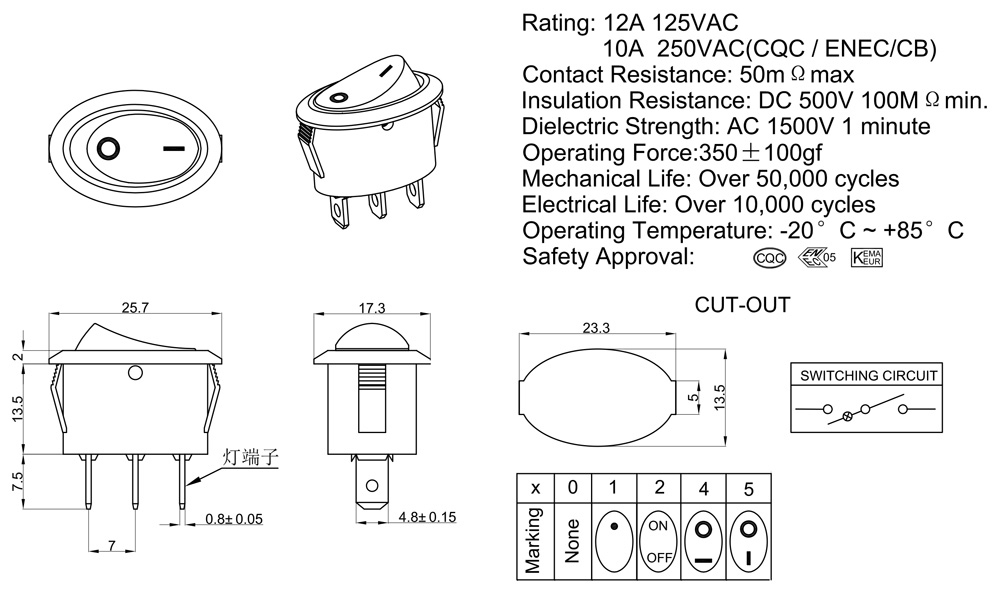

DRAWING
ORDER CODING DIAGRAM
