CLASSIFICATION
PRODUCT MODEL:SR-B-110-C5N-BB
SR-B-110-C5N-BB
PRODUCT SPECIFICATION:
Rating:6A 125VAC 3A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Operating Force:250±100gf
Mechanical Life:50,000cycles
Load Life:10,000 Cycles
Operating Temperature:-20°C~85°C
Application：
Computer Peripherals 電腦外設
Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化

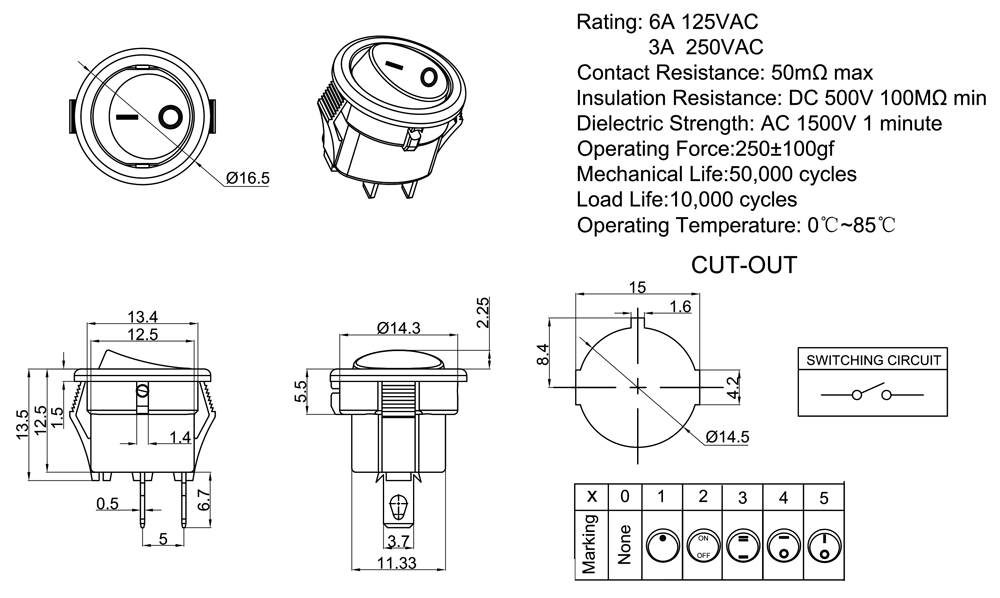

DRAWING
ORDER CODING DIAGRAM
