CLASSIFICATION
PRODUCT MODEL:PBM12-11M-RR-DR2-B2-S
PBM12-11M-RR-DR2-B2-S
PRODUCT SPECIFICATION:
Circuit:SPST
Current rating:2A
Voltage rating:36VDC
Dielectric withstanding voltage :1000VAC for 1 minute
Contact resistance:50mΩ Max
lnsulation resistance:100MΩ Min
Travel:2.0mm±0.4mm
Operating Force:400±150gf
Mechanical life:1,000,000 cycles Min
Electric life:100,000 cycles Min
Manual Welding:350°C for 3 seconds
Function:Momentary
Operating temperature:-20°C~+70°C
Level of protection:IP65
Current rating:2A
Voltage rating:36VDC
Dielectric withstanding voltage :1000VAC for 1 minute
Contact resistance:50mΩ Max
lnsulation resistance:100MΩ Min
Travel:2.0mm±0.4mm
Operating Force:400±150gf
Mechanical life:1,000,000 cycles Min
Electric life:100,000 cycles Min
Manual Welding:350°C for 3 seconds
Function:Momentary
Operating temperature:-20°C~+70°C
Level of protection:IP65
Application：
電子門鎖系統 Electronic lock system
酒店設備 Hotel equipment
通信醫療設備 Communication medical equipment
小家電 Small home appliance
航空航天船舶 Aerospace ship
汽車周邊產品 Automobile peripheral products

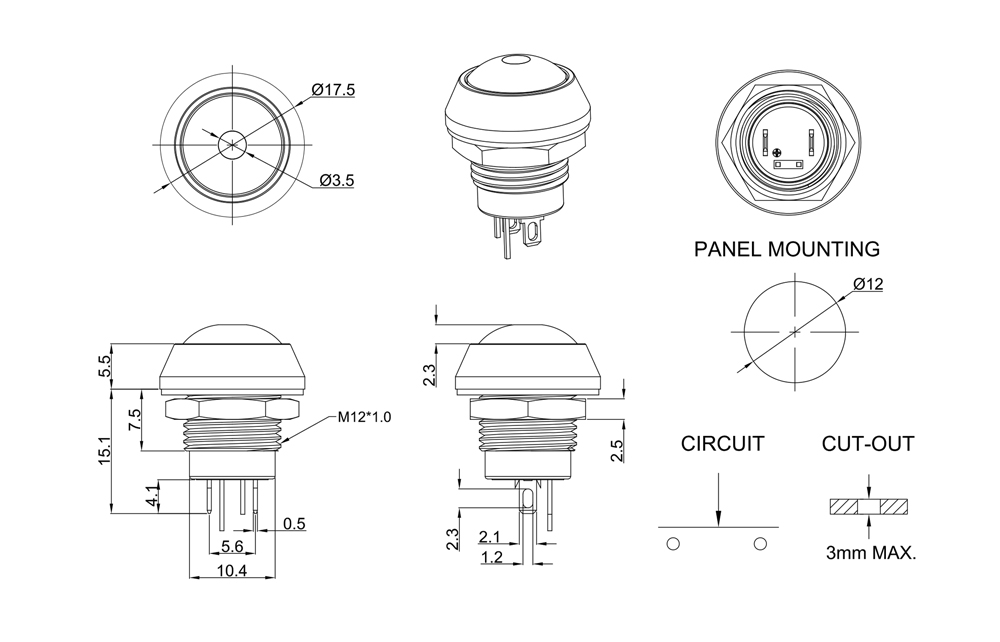

DRAWING
ORDER CODING DIAGRAM
