CLASSIFICATION
PRODUCT MODEL:PBM10-13M-H-NNN-B1 防水IP67
PBM10-13M-H-NNN-B1 防水IP67
PRODUCT SPECIFICATION:
Rating:3A 125VAC
:1.5A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min.
Dielectric Strength:AC 1000V 1 minute
Electrial Life:100,000 cycles
Openrating Temperature:-40℃~85℃
Protection degree
IP 67 (sealed 10 mm dia. version only)
IP 65 with protective cap
function:ON-(ON) 1-C-2
:1.5A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min.
Dielectric Strength:AC 1000V 1 minute
Electrial Life:100,000 cycles
Openrating Temperature:-40℃~85℃
Protection degree
IP 67 (sealed 10 mm dia. version only)
IP 65 with protective cap
function:ON-(ON) 1-C-2
Application：
Recommended 產品特點與應用The switches can be IP65 with fitted silicone cap
or IP 67 with fitted silicone cap.
產品可以做到IP65/IP67防水等級
panel mounting holeof 10 mm dia.
產品面板開孔尺寸僅為10mm.
outdoor applications, 戶外設備
military and avionics equipment,軍工與安防
telecommunications, 通信設備
medical equipment, 醫(yī)療設備
power supplies.電源供應器

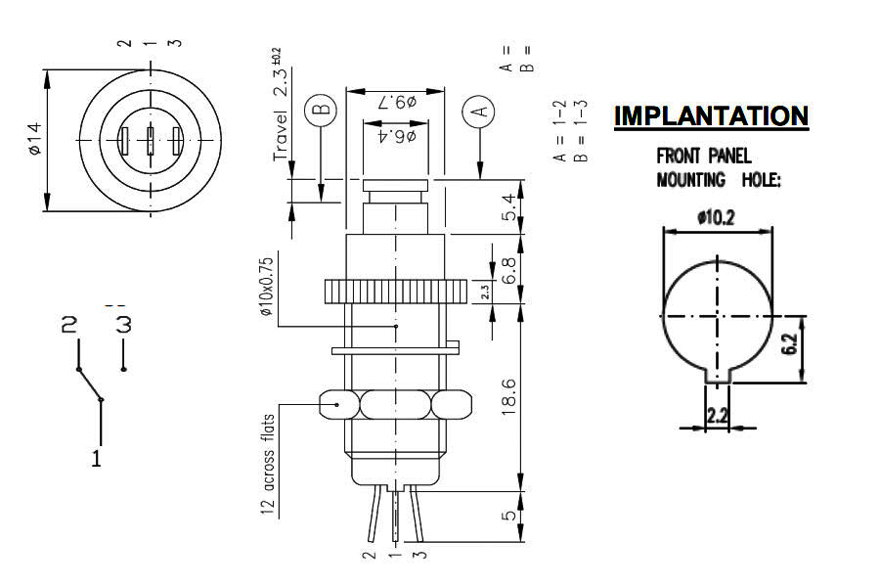

DRAWING
ORDER CODING DIAGRAM
