CLASSIFICATION
PRODUCT MODEL:PB03-21-4-BW
PB03-21-4-BW
PRODUCT SPECIFICATION:
Rating:7A 14VDC(UL CUL)
Contact Resistance:50mΩ Max
Insulation Resistance:500VDC 100MΩ Min.
withstand Voltage:1000VAC 1 Minute
Operating Force:500±150gf
Travel:2.6±0.4mm
Life Cycle:10,000Cycles
Application：
Lighting Fixtures
照明燈具
Hand-held vacuum cleaner
手持式吸塵器
Sweeping robot
照明燈具
Hand-held vacuum cleaner
手持式吸塵器
Sweeping robot
掃地機器人
Steam Hot Bucket
蒸氣燙斗
Automotive Electronics
汽車電子
蒸氣燙斗
Automotive Electronics
汽車電子

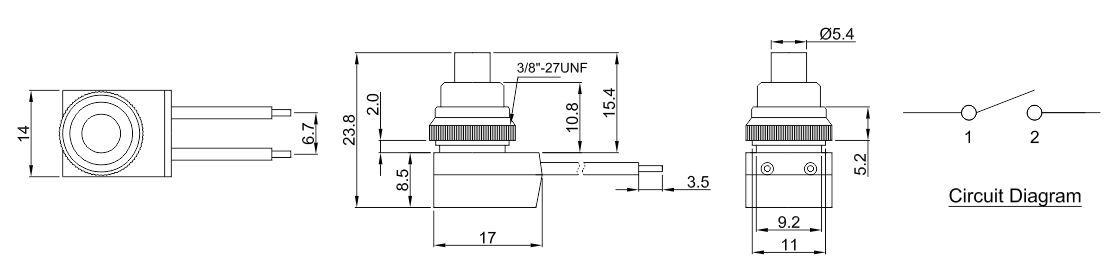

DRAWING
ORDER CODING DIAGRAM
