CLASSIFICATION
PRODUCT MODEL:PB01-YB-PM-G
PB01-YB-PM-G
PRODUCT SPECIFICATION:
Rating:3A 125V AC 1.5A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:100MΩ Min
withstand Voltage:1000VAC for 1 Minute
Operating Force:250±50gf or 450±100gf
Travel2.0±0.4mm
Life Cycle:50,000Cycles
Function:OFF-(ON) ON-OFF
Application：
Lighting Fixtures 照明燈具
Automated production 自動化生產
Instruments and meters 儀器儀表
Professional Audio 專業音響
Testing equipment 檢測設備
Electrical toys 電動玩具
Testing equipment 檢測設備
Electrical toys 電動玩具

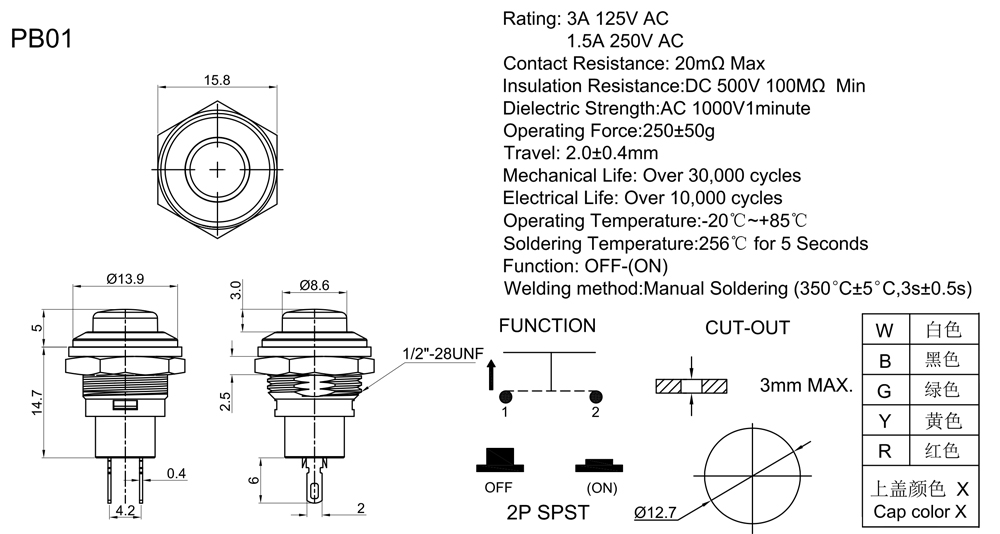

DRAWING
ORDER CODING DIAGRAM
