CLASSIFICATION
PRODUCT MODEL:PB09A-M-210-C0E-BR-220
PB09A-M-210-C0E-BR-220
PRODUCT SPECIFICATION:
Rating: 16A 125V AC (UL CUL)
16A 250V AC (ENEC CQC CB)
Contact Resistance: 50mΩ Max
lnsulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 500±300gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature:-30℃~+85℃
16A 250V AC (ENEC CQC CB)
Contact Resistance: 50mΩ Max
lnsulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 500±300gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature:-30℃~+85℃
Application：
? Communication equipment,通信設備
? wireless application equipment 無線設備
? wireless application equipment 無線設備
? Electronic tester 電子測試。
? Automation equipment 自動化設備
? Transaction Equipment 交通運輸設備
? Electronic equipment for people\’s livelihood
民用電子設備
? Automation equipment 自動化設備
? Transaction Equipment 交通運輸設備
? Electronic equipment for people\’s livelihood
民用電子設備

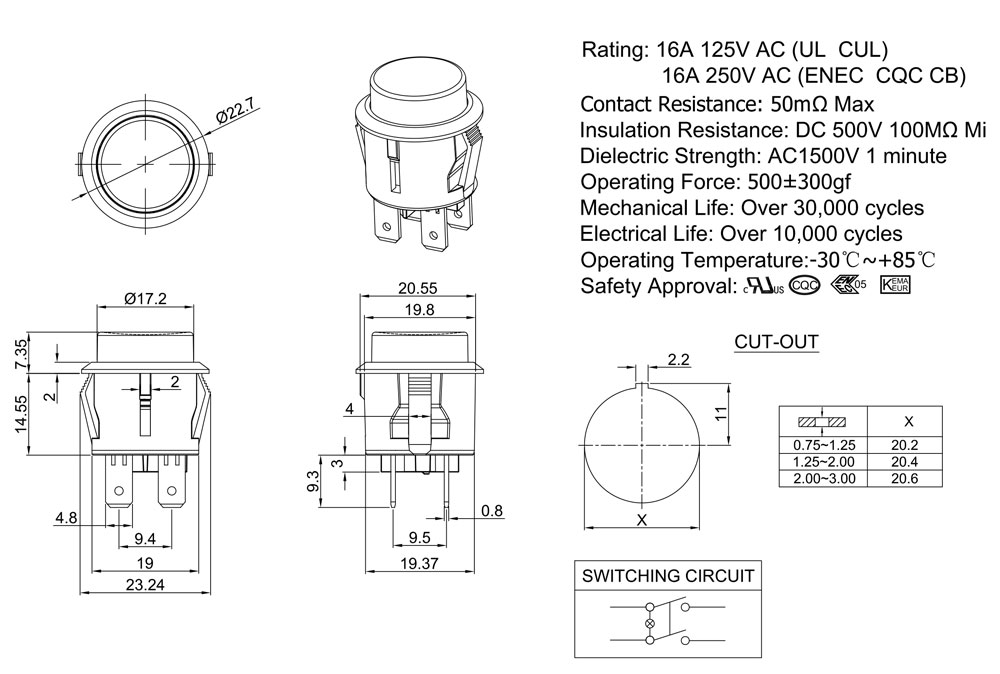

DRAWING

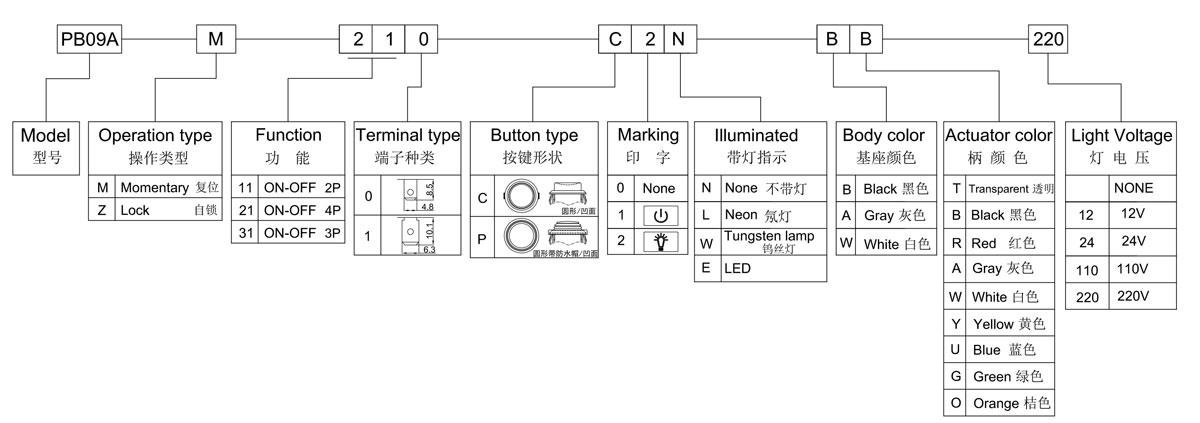

ORDER CODING DIAGRAM
