CLASSIFICATION
PRODUCT MODEL:PB86-B0-A-N
PB86-B0-A-N
PRODUCT SPECIFICATION:
Circuit :SPDT
Current Rating :12mA
Voltage Rating :24VDC
Contact Resistance :50mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :170±50gf
Total Travel :2.0±0.4mm.
Electrical life :200,000 cycles
Soldear Specifications :256°C for 5 Seconds
Function :Momentray
Openrating Temperature:-20°C~+ 70°C
Current Rating :12mA
Voltage Rating :24VDC
Contact Resistance :50mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :170±50gf
Total Travel :2.0±0.4mm.
Electrical life :200,000 cycles
Soldear Specifications :256°C for 5 Seconds
Function :Momentray
Openrating Temperature:-20°C~+ 70°C
Application：
Stage Lighting control equipment
舞臺燈光控制設(shè)備
Video processor 視頻處理器
Matrix Controller 矩陣控制器
Security equipment 安防設(shè)備
Cashier Equipment 收銀設(shè)備

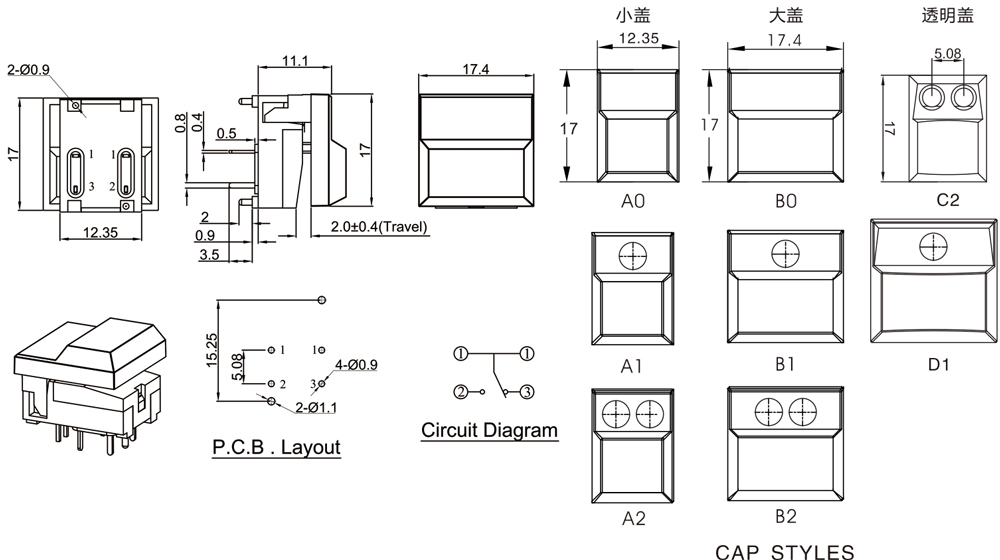

DRAWING

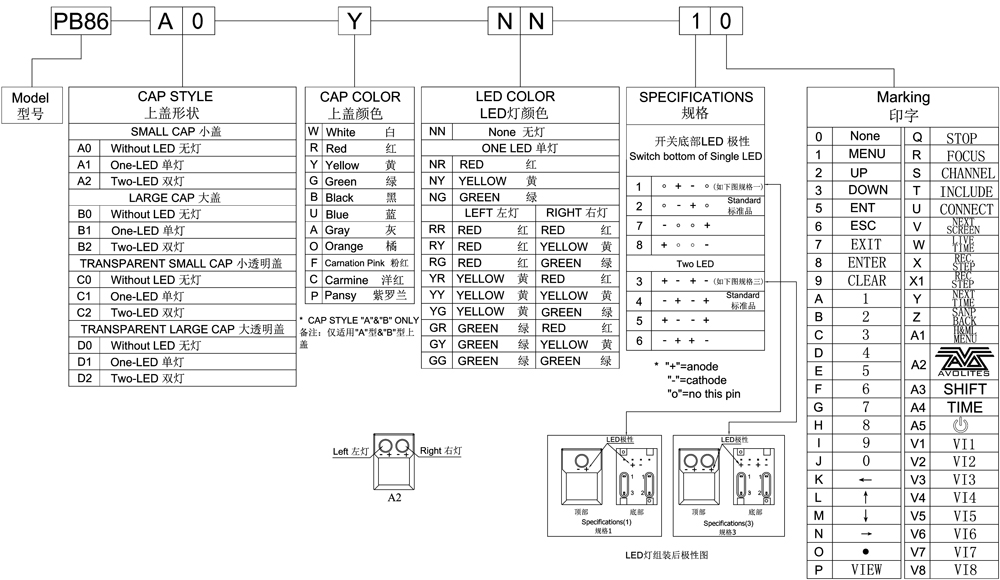

ORDER CODING DIAGRAM
