CLASSIFICATION
PRODUCT MODEL:SA-03 美規(guī)NEMA 5-15R
SA-03 美規(guī)NEMA 5-15R
PRODUCT SPECIFICATION:
Rating:15A 250VAC
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
MATERIAL:
Base: PA66
Terminal:Brass,Tin plated
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
MATERIAL:
Base: PA66
Terminal:Brass,Tin plated
Application：
Circuit overload Protection電路過載保護Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

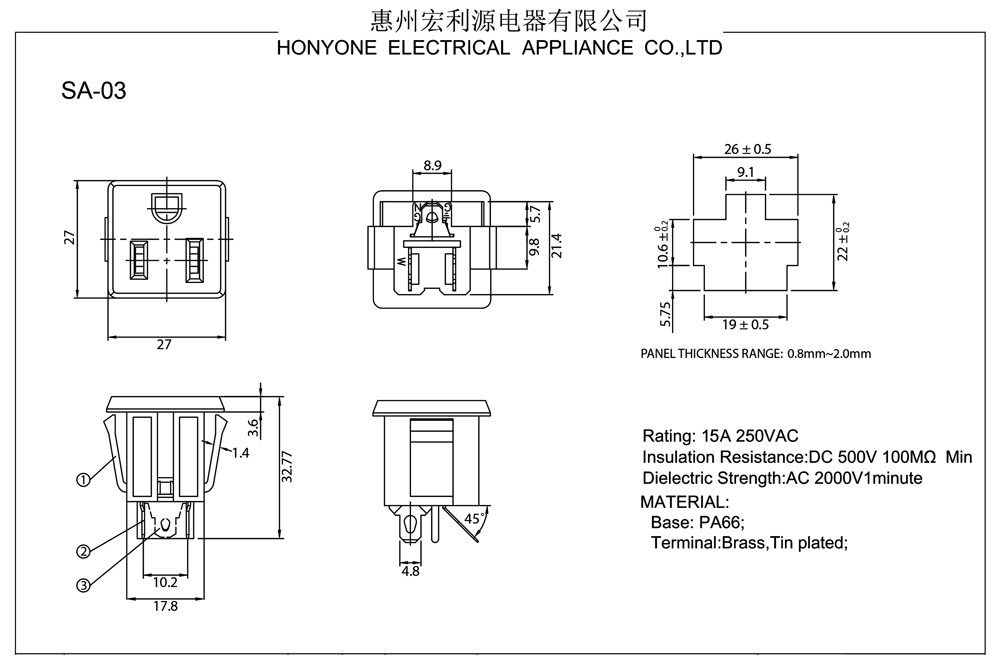

DRAWING
ORDER CODING DIAGRAM
