CLASSIFICATION
PRODUCT MODEL:GB-02
GB-02
PRODUCT SPECIFICATION:
Rating:15A 125VAC
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Operating Temperature:-25 °C~+70°C
MATERIAL:
Base: PA66;UL94V0
Terminal:Brass,silver or Sn plated;
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Operating Temperature:-25 °C~+70°C
MATERIAL:
Base: PA66;UL94V0
Terminal:Brass,silver or Sn plated;
Application：
Circuit overload Protection電路過載保護Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

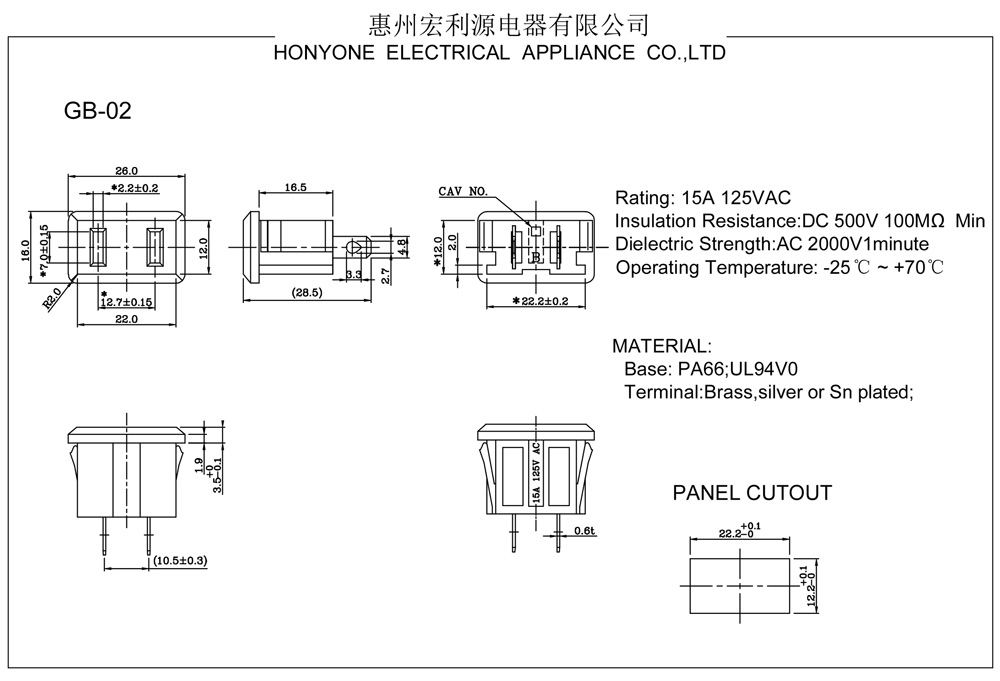

DRAWING
ORDER CODING DIAGRAM
