CLASSIFICATION
PRODUCT MODEL:S-03-20-22-C19
S-03-20-22-C19
PRODUCT SPECIFICATION:
Rating:16A/20A 250VAC
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
MATERIAL:
Base:PA66
Terminal:Brass,Tin plated;
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
MATERIAL:
Base:PA66
Terminal:Brass,Tin plated;
Application：
Circuit overload Protection電路過載保護(hù)Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫(yī)療設(shè)備
Instruments and meters 儀器儀表

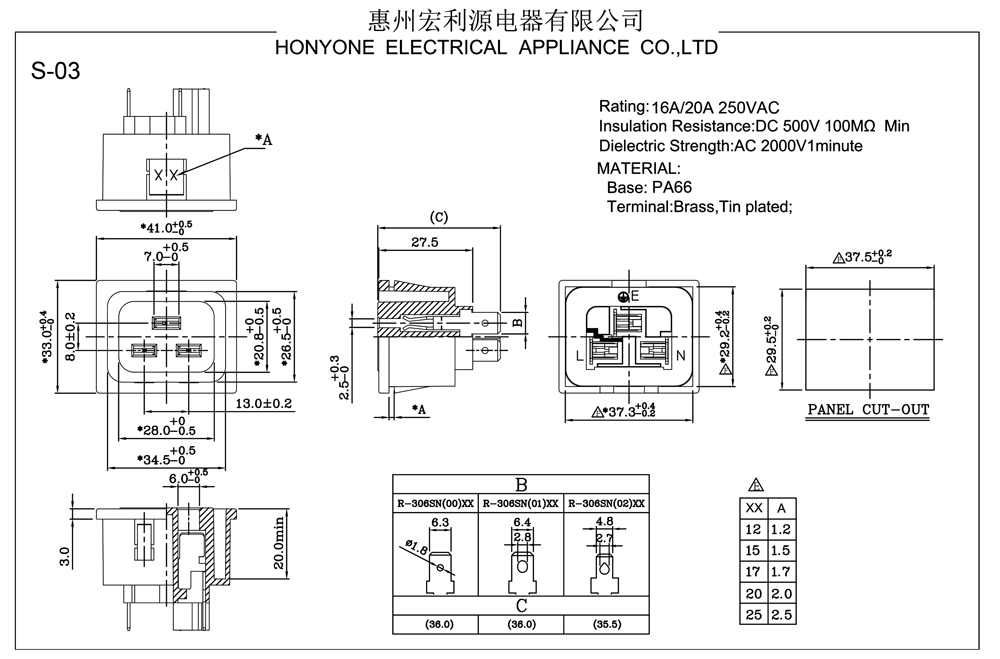

DRAWING
ORDER CODING DIAGRAM
