CLASSIFICATION
PRODUCT MODEL:S-03F-11+TJ
S-03F-11+TJ
PRODUCT SPECIFICATION:
Rating: 10A 250VAC(ENEC K-MARK)
10A 250VAC(CCC)
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Fuse:?5.0x20mm
MATERIAL:
Base: PBT+GF;
Cap: PA66 ;
10A 250VAC(CCC)
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
Fuse:?5.0x20mm
MATERIAL:
Base: PBT+GF;
Cap: PA66 ;
Terminal:Copper alloy,Ni plated;
Application：
Circuit overload Protection電路過載保護
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫療設備
Instruments and meters 儀器儀表

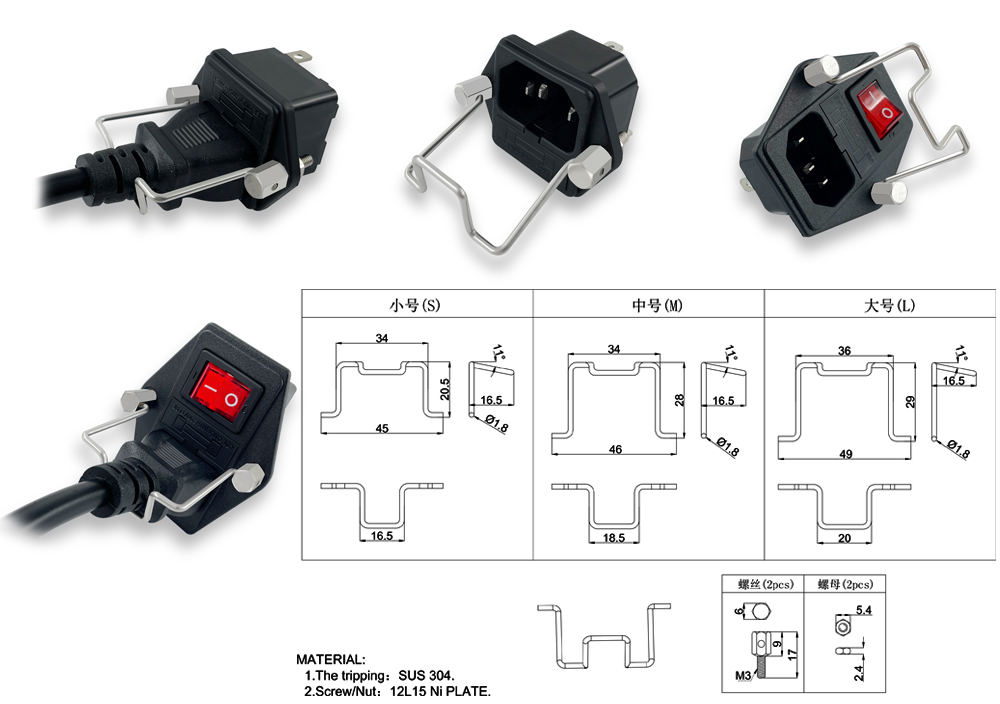

DRAWING
ORDER CODING DIAGRAM
