CLASSIFICATION
PRODUCT MODEL:Protection cover-G
Protection cover-G
PRODUCT SPECIFICATION:
MATERIAL: Panel: steel with black glossy finish.
Mounting hole diameter: 12.2mm (0.481").
Accepts switches with standard M12.0 or 15/32"
diameter mounting hole.
The length of switch′s lever can′t over 25mm.
( Fits SCI switch R13-5,R13-8,R13-28,R13-404,R13-61 series )
For color option, contact sales dept.
Mounting hole diameter: 12.2mm (0.481").
Accepts switches with standard M12.0 or 15/32"
diameter mounting hole.
The length of switch′s lever can′t over 25mm.
( Fits SCI switch R13-5,R13-8,R13-28,R13-404,R13-61 series )
For color option, contact sales dept.
Application：
取暖器 heater電風扇 Electric fan
監(jiān)控攝像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment

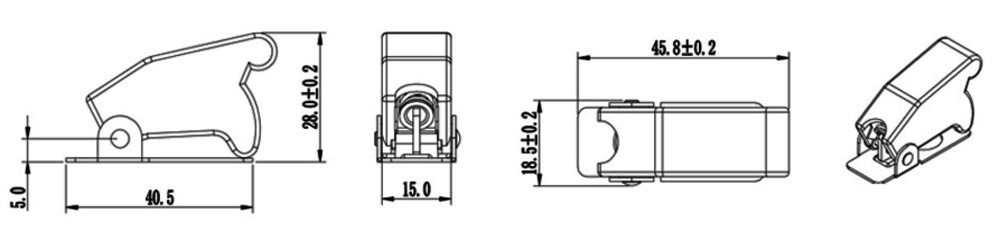

DRAWING
ORDER CODING DIAGRAM
