CLASSIFICATION
PRODUCT MODEL:OLED-B1 64x48 pixels
OLED-B1 64x48 pixels
PRODUCT SPECIFICATION:
Display equipment color OLED display module
Visual field 15.5mmx11.6mm(horizontal X vertical) pixel format
64RGBx48 pixels (horizontal X vertical)
Interface Serial (SPI) interface
Color number 65,356 (16 bits: R5 bits /G6 bits /B5 bits) or
256 colors (8 bits: R2 /G3 /B3)
Operating temperature range -- 20℃~+70℃(-- 4°F~+158°F)
Operating life (display) 30,000 hours (with 40% pixels on)
Circuit SPST is normally on
Visual field 15.5mmx11.6mm(horizontal X vertical) pixel format
64RGBx48 pixels (horizontal X vertical)
Interface Serial (SPI) interface
Color number 65,356 (16 bits: R5 bits /G6 bits /B5 bits) or
256 colors (8 bits: R2 /G3 /B3)
Operating temperature range -- 20℃~+70℃(-- 4°F~+158°F)
Operating life (display) 30,000 hours (with 40% pixels on)
Circuit SPST is normally on
Application：
Industrial control, medical, broadcasting, telecommunications, military,Measuring instrument
Main Features:
High definition, contrast, 16 bit color mode to show 65563 colors
Operating life of more than 50,000 hours
Thin border, achieve full - screen display
The 0.07 inch short stroke operation brings tactile feedback to the touch panel
With bitmap display function
Low energy consumption, dustproof, long life
Epoxy resin seals PC terminals

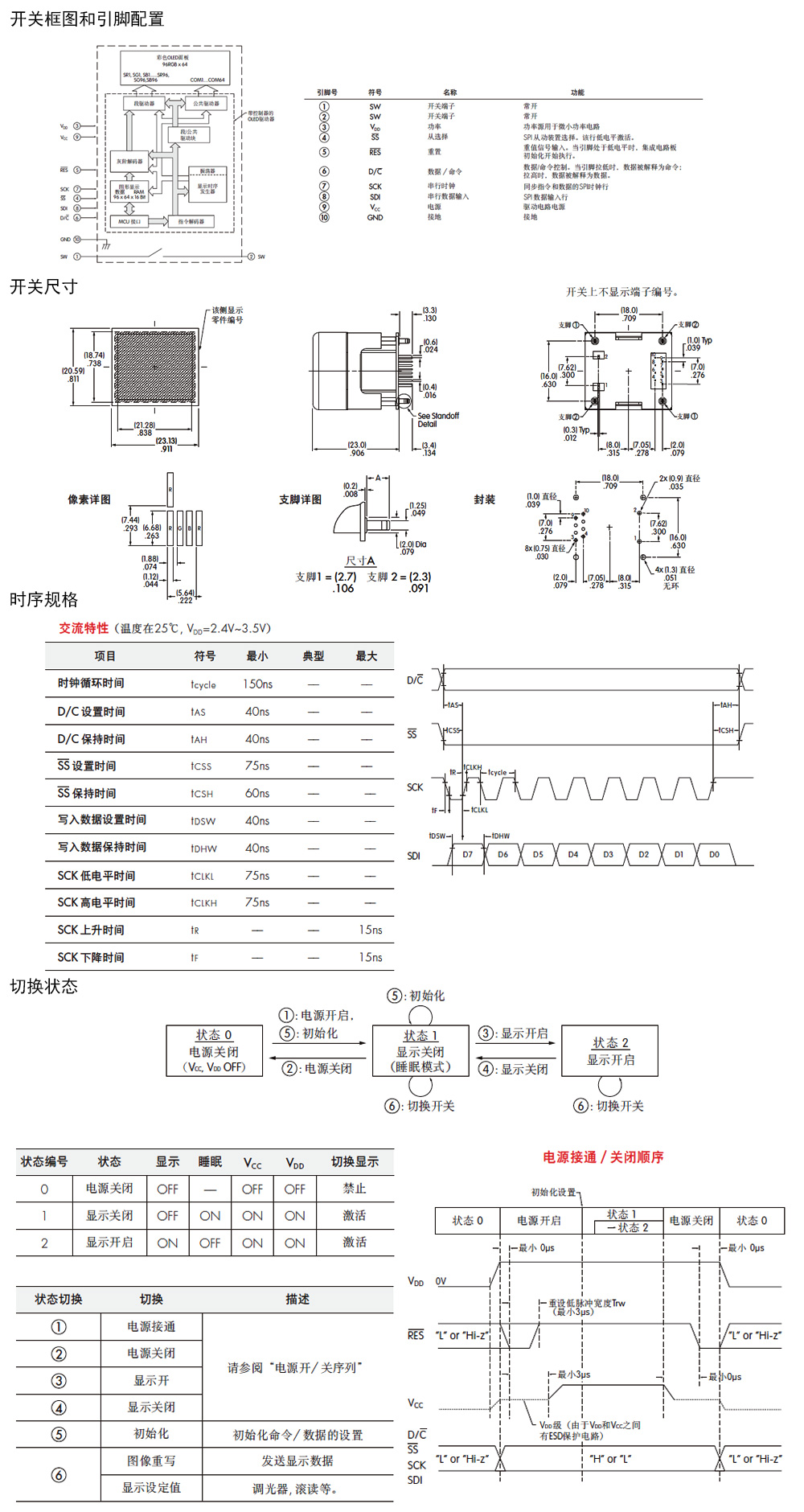

DRAWING
ORDER CODING DIAGRAM
