CLASSIFICATION
PRODUCT MODEL:X5-264ENN-1ABD-7F
X5-264ENN-1ABD-7F
PRODUCT SPECIFICATION:
16(8)A 125/250V, ~ μT55,~ μ40T85/55, 1E4, 50/60Hz
(cURus, ENEC15)
20(8)A 125/250V,~ μT55,~u40T85/55, 1E4,
50/60Hz(cURus, ENEC15)
16A DC, 6~30V, μT55, μ40T85/55, 1E4, 50/60Hz
(cURus, ENEC15)
Electrical life:6,000 cycles(cURus), 10,000 cycles
( ENEC15)
Dielectric strength: 1,500 VAC for 1 minute
Initial contact resistance: 20m Ohms max.
Insulation resistance: 100M Ohms min, at 500VDC
(cURus, ENEC15)
20(8)A 125/250V,~ μT55,~u40T85/55, 1E4,
50/60Hz(cURus, ENEC15)
16A DC, 6~30V, μT55, μ40T85/55, 1E4, 50/60Hz
(cURus, ENEC15)
Electrical life:6,000 cycles(cURus), 10,000 cycles
( ENEC15)
Dielectric strength: 1,500 VAC for 1 minute
Initial contact resistance: 20m Ohms max.
Insulation resistance: 100M Ohms min, at 500VDC
Application：
Computer Peripherals 電腦外設Telecommunications network 電信網絡
TV Set-top box 電視機頂盒
Lamp Lighting 燈具照明
Consumer Electronics 消費類電子
Household appliances 家用電器
Car Rail Transportation 汽車軌道交通
Electronic toys 電子玩具
Power Tools Series 電動工具類
Industrial automation工業自動化

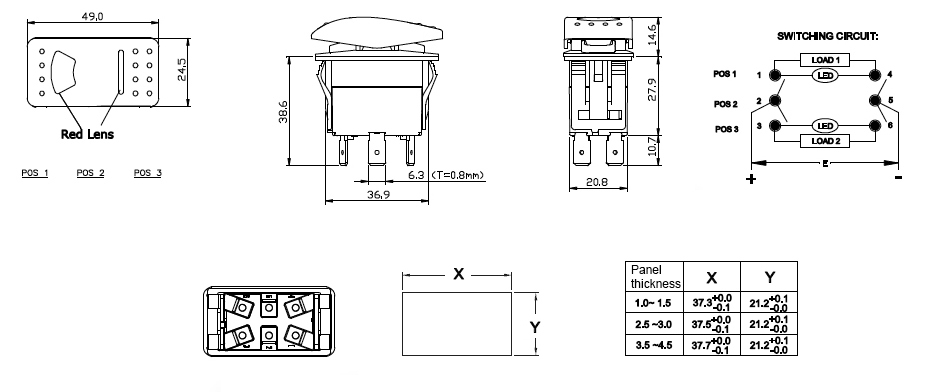

DRAWING

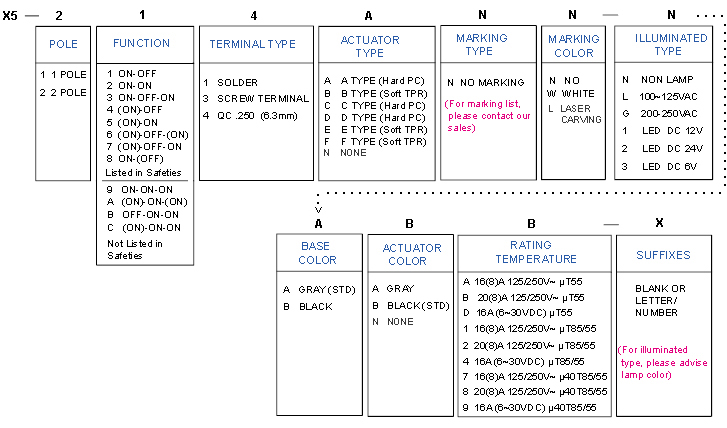

ORDER CODING DIAGRAM
