CLASSIFICATION
PRODUCT MODEL:PSM30-13M-P-PR6-S0
PSM30-13M-P-PR6-S0
PRODUCT SPECIFICATION:
SPECIFICATIONS
Rating: 16A 250VAC ;16A125VAC ;
Degree of protction:IP65;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1500VAC For 1 minute ;
Total Travel: 3.5±0.5mm ;
Operating Force:350±100gf;
Mechanical Life:50,000 cycles ;
Load Life:10,000 cycles ;
Operating Temperation:-20°C~ 70°C;
Function:Momentary
Rating: 16A 250VAC ;16A125VAC ;
Degree of protction:IP65;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1500VAC For 1 minute ;
Total Travel: 3.5±0.5mm ;
Operating Force:350±100gf;
Mechanical Life:50,000 cycles ;
Load Life:10,000 cycles ;
Operating Temperation:-20°C~ 70°C;
Function:Momentary
Application：
? Outdoor Controls ·戶外控制? Security Equipment ·安全設備
? Medical Equipment ·醫(yī)療設備
? Food Processing Equipment ·食品加工設備
? Military Equipment ·軍用設備
? Industrial Machinery ·工業(yè)機械
? Transportation: Mass-Transit, Lift Trucks
?運輸: 大眾運輸, 起重卡車

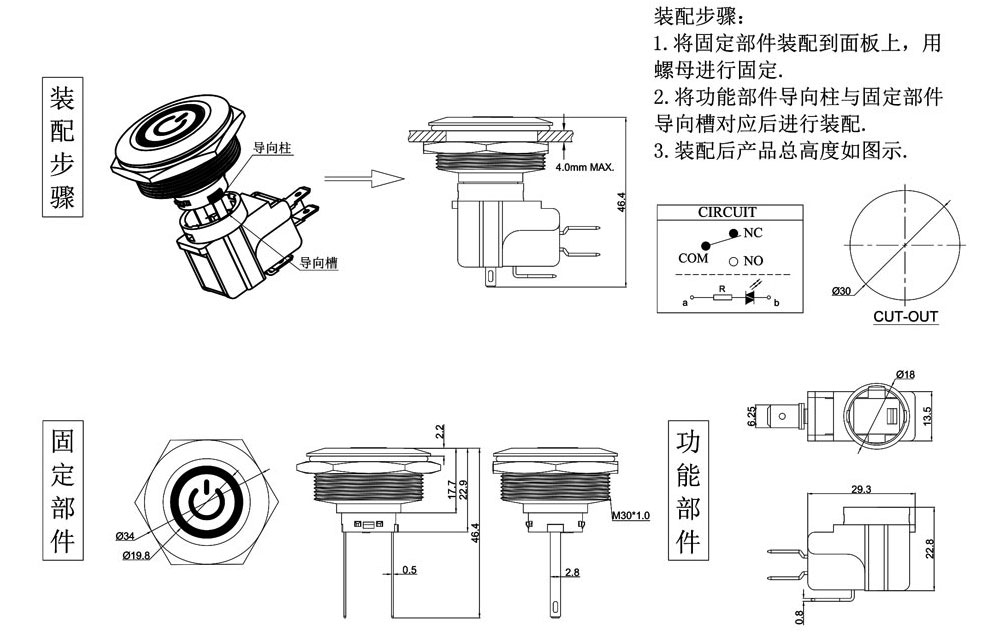

DRAWING
ORDER CODING DIAGRAM
