CLASSIFICATION
PRODUCT MODEL:T7011-T2
T7011-T2
PRODUCT SPECIFICATION:
Rating：10A 125V AC
6A 250V AC
Contact resistance：50mQ Max
Insulation resistance：DC 500V 100MQ Min
Dielectric strength：AC 1500V 1 minute
MATERIAL: Metal lever and bushing are nickel plated
metal.Frame is nickel plated steel. Base is phenolic.
Indicator plate, watertight boot (W-70B) and
safety cover are optional.
6A 250V AC
Contact resistance：50mQ Max
Insulation resistance：DC 500V 100MQ Min
Dielectric strength：AC 1500V 1 minute
MATERIAL: Metal lever and bushing are nickel plated
metal.Frame is nickel plated steel. Base is phenolic.
Indicator plate, watertight boot (W-70B) and
safety cover are optional.
Application：
取暖器 heater電風扇 Electric fan
監控?cái)z像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment

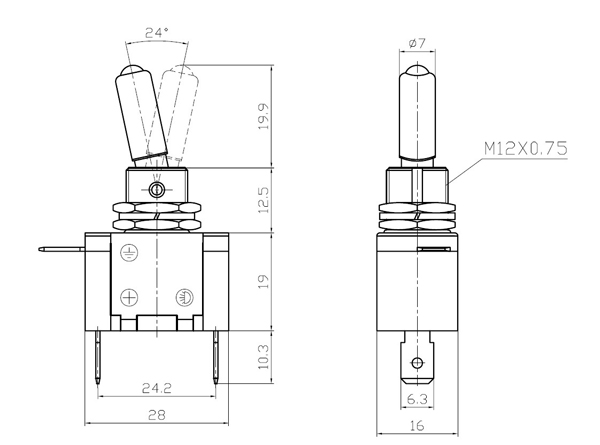

DRAWING
ORDER CODING DIAGRAM
