CLASSIFICATION
PRODUCT MODEL:TS12-1W2-W-4A-S
TS12-1W2-W-4A-S
PRODUCT SPECIFICATION:
Circuit :SPST
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :250±50gf
Total Travel :0.4±0.1 5mm
Opearating life :500,000 Cycles Min
Soldear Specifications :260°C for 5 Seconds
Function :Momentary
Openrating Temperature :-20C~+ 70°C
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :100MΩ Min.
Operating Force :250±50gf
Total Travel :0.4±0.1 5mm
Opearating life :500,000 Cycles Min
Soldear Specifications :260°C for 5 Seconds
Function :Momentary
Openrating Temperature :-20C~+ 70°C
Application：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備
DRAWING

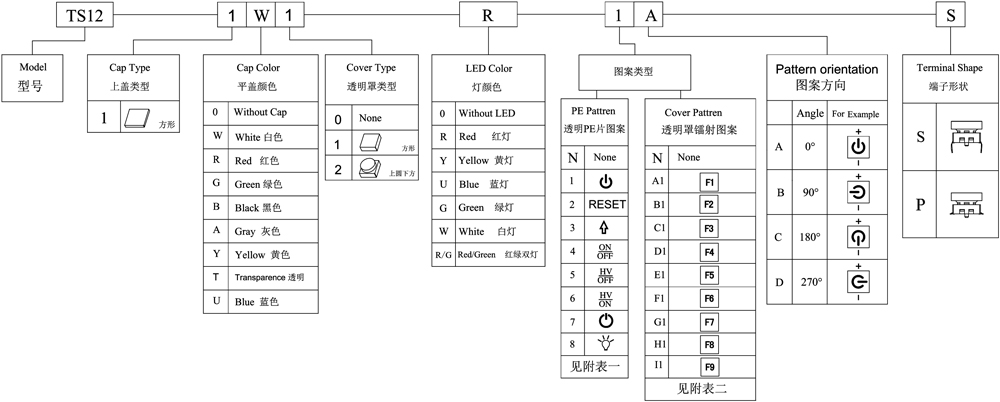

ORDER CODING DIAGRAM
