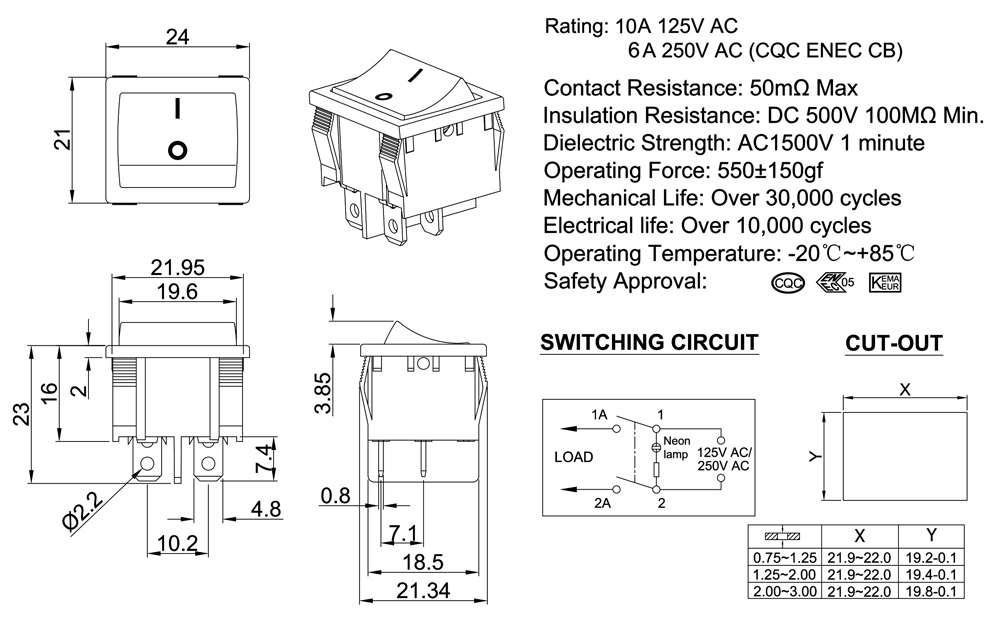

Rating: 10A 125V AC
6A 250V AC (CQC ENEC CB)
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100MΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 550±150gf
Mechanical Life: Over 30,000 cycles
Electrical life: Over 10,000 cycles
Operating Temperature: -20°C~+85°C
Safety Approval
