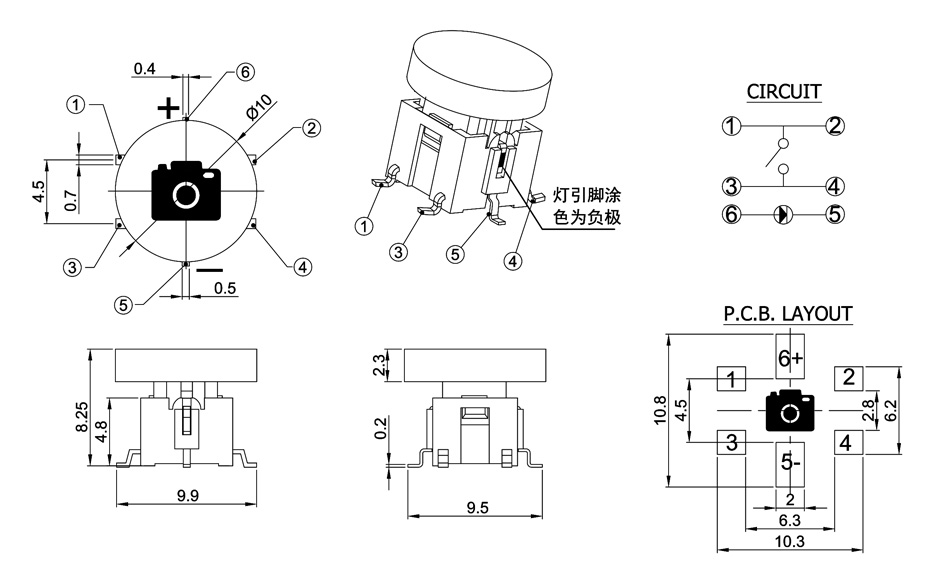

產品型號：TS2-00-6SU-72A-241P
TS2-00-6SU-72A-241P
產品規格：
Circuit:SPST
Current rating:50mA
Voltage rating:12VDC
Dielectric withstanding voltage :
250VAC for 1 minute
Contact resistance:30mΩ Max. (Initial)
Insulation resistance:100MΩ Min.
Operating force:250±50gf:180±50gf
Total travel:0.25mm±0.1mm
Operating life:100,000 cycles Min
Solder specifications:256°C for 5 seconds
Function:Momentary
Operating temperature:-20°C~ +70°C
Welding method:Manual Soldering
(350°C+5°C,3s+0.5s)
應用領域：
輕觸開關有接觸電阻荷小、精確的操作力誤差、規格多樣化等方面的優勢，在電子設備及白色家電等方面得到廣泛的應用如:彩色電視機、黑白電視機、音響設備、錄像機、攝像機、計算機、游戲機、傳真機、對講機、警棍、機床控制裝置、復印、打印機、電子儀器、儀表和其它家用電器。
