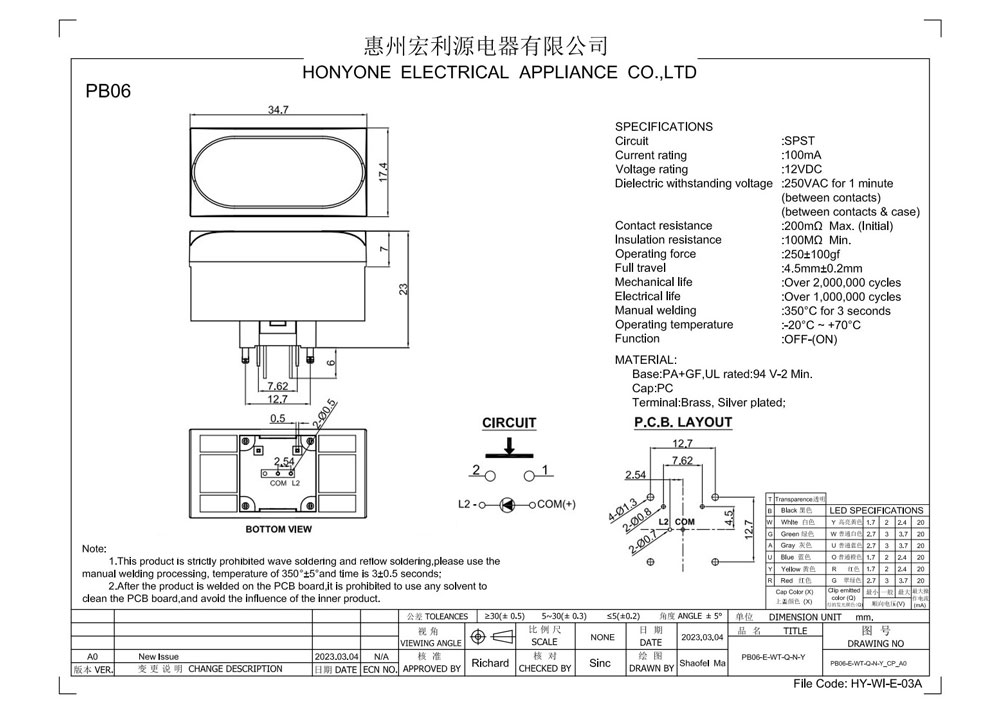

產(chǎn)品型號：PB06-E-WT-R-N-Y
PB06-E-WT-R-N-Y
產(chǎn)品規(guī)格：
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage:250vAC for 1 minute
Contact resistance :200mΩ Max.(Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm±0.2mm
Mechanical life :Over 2,000,000 cycles
Electrical life :Over 1,000,000 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°C~+70°℃
Function :OFF-(ON)
應用領域：
Video processor 視頻處理器
Security Monitoring Equipment
安防監(jiān)控設備
Teaching recording and broadcasting equipment
教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備
