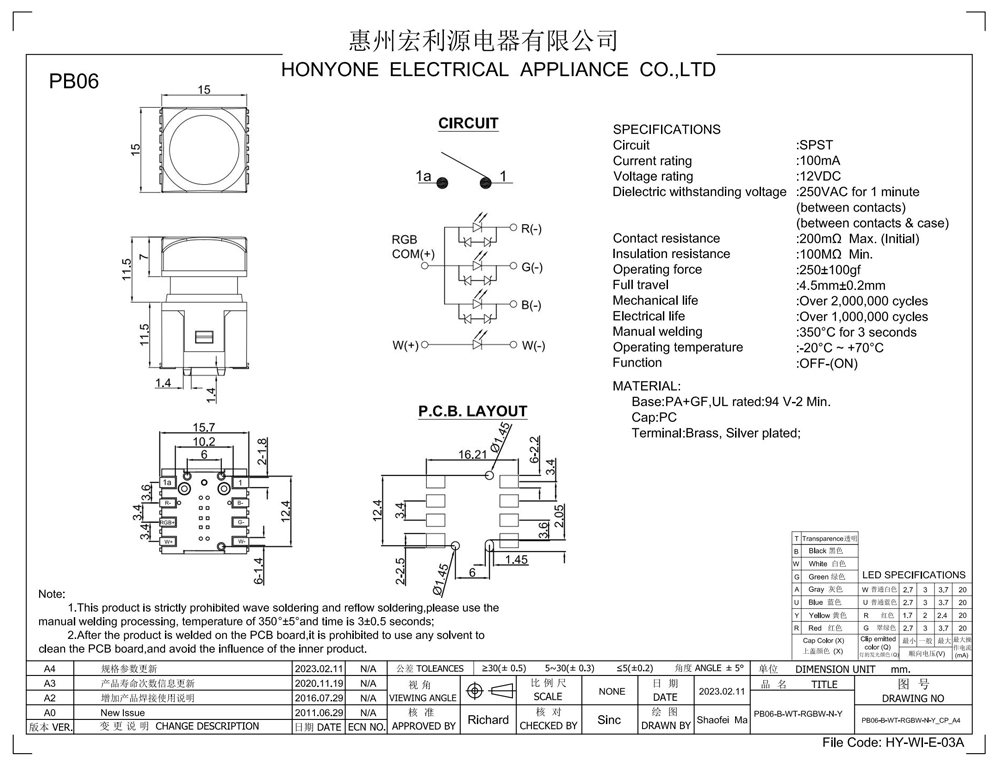

產品型號：PB06-B-WT-RGB-N-Y
PB06-B-WT-RGB-N-Y
產品規格：
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
(between contacts)(between contacts & case)
Contact resistance :200mΩ Max.( Initial)
lnsulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm±0.2mm
Mechanical life :over 2,000,oo0 cycles
Electrical life :Over 1,000,0o0 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°C~+70°C
Function :OFF-(ON)
應用領域：
Video processor 視頻處理器
Security Monitoring Equipment
安防監控設備
Teaching recording and broadcasting equipment
教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備
