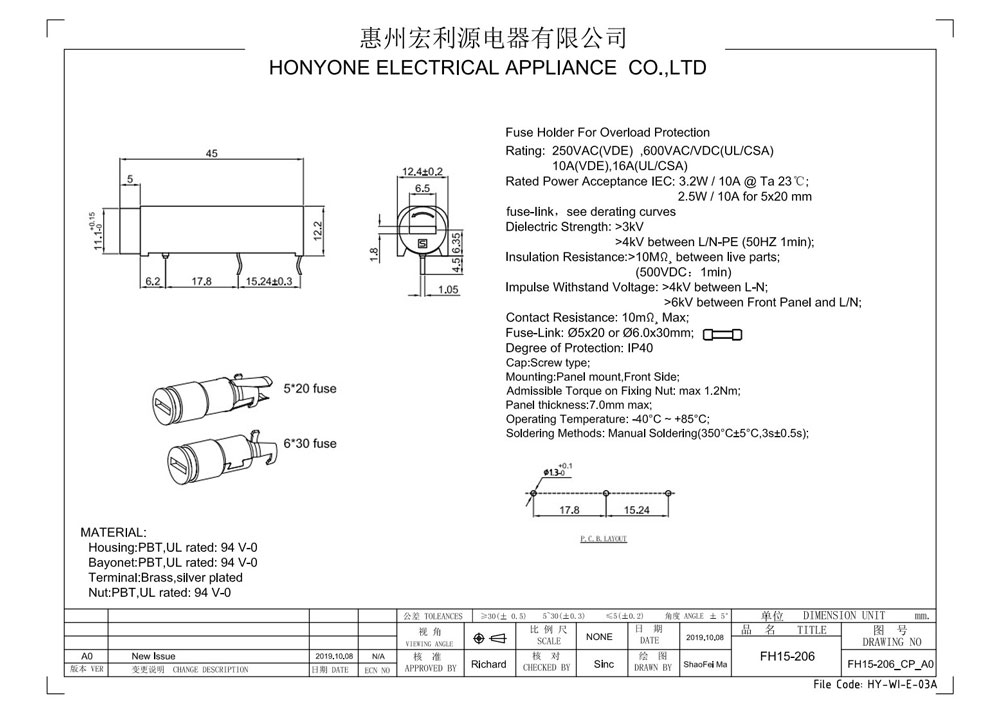

產品規格：
Rating: 250VAC(VDE) ,600VAC/VDC(UL/CSA)
10A(VDE),16A(UL/CSA)
Rated Power Acceptance IEC: 3.2W / 10A @ Ta 23 °C;
2.5W/10A for 5x20 mm
fuse-link, see derating curves
Dielectric Strength: >3kV
>4kV between L/N-PE (50HZ 1min);
Insulation Resistance:>10MΩS, between live parts;
(500VDC: 1min)
Impulse Withstand Voltage: >4kV between L-N;
>6kV between Front Panel and L/N;
Contact Resistance: 10mso,Max;
Fuse-Link:φ5x20 or φ6.0x30mm;
Degree of Protection: IP40
應用領域：
Circuit overload Protection電路過載保護
Automotive Electronics 汽車電子
Household appliances 家用電器
Beauty Equipment 美容器材
Medical equipment 醫療設備
Instruments and meters 儀器儀表
