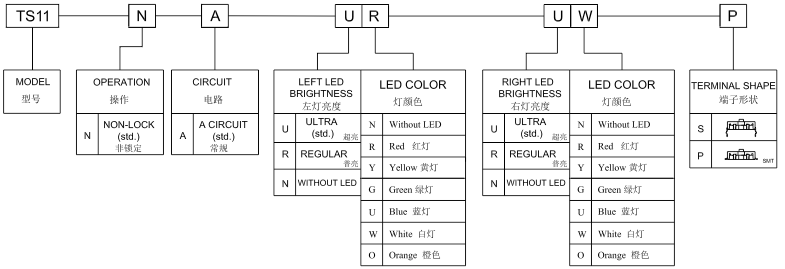

產(chǎn)品型號：TS11-N-A-RG-RG-P
TS11-N-A-RG-RG-P
產(chǎn)品規(guī)格：
Circuit :SPST withLED
Current Rating :50mA
Voltage Rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
Contact Resistance :500mΩ Max(intial )
Insulation Resistance :100MΩ Min.
Operating Force :160﹢75/-30gf
Total Travel :0.25﹢0.2/-0.1 mm
Opearating Force :30,000 Cycles Min
Soldear Specifications :260°C for 5 Seconds
Function :Momentary
Openrating Temperature :-20°C+ 70°C
應用領域：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫(yī)療設備
