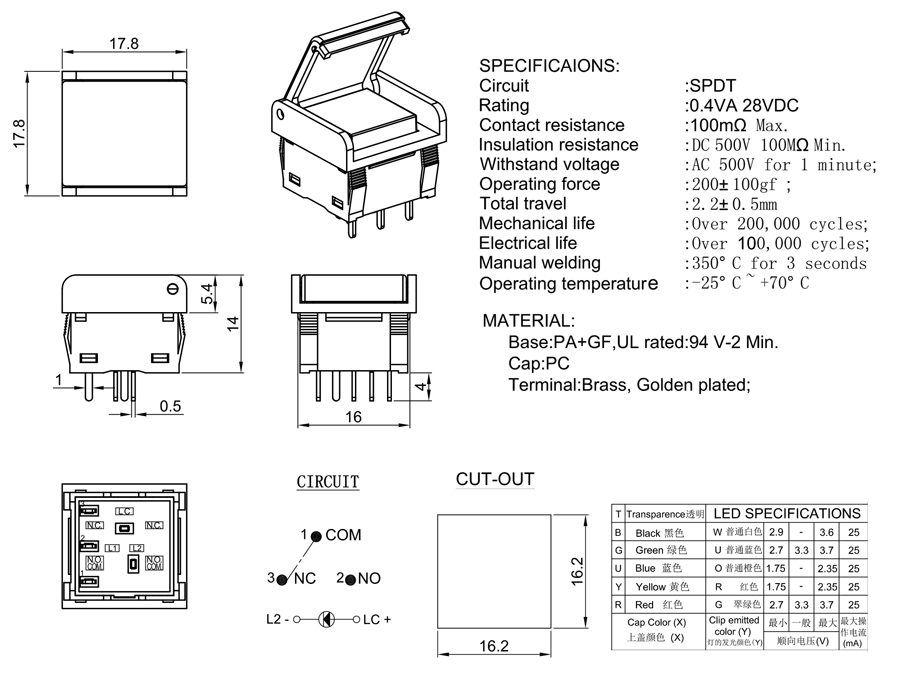

產品型號：PB46-13M-B3-WR-RN
PB46-13M-B3-WR-RN
產品規格：
Circuit:SPDT
Rating:0.4VA 28VDC
Contact resistance:100mΩ Max.
Insulation resistance:DC 500V 100MΩ Min.
Withstand voltage:AC 500V for 1 minute;
Operating force .:200±100gf ;
T otal travel:2.2±0.5mm
Mechanical life:Over 200, 000 cycles;
Electrical life:Over 100, 000 cycles;
Manual welding:350° C for 3 seconds
Operating temperature:-25° C~ +70° C
應用領域：
Video processor 視頻處理器
Security Monitoring Equipment
安防監控設備
Teaching recording and broadcasting equipment
教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備
