產品型號：TS5-4TG-0N-121S
TS5-4TG-0N-121S
產品規格：

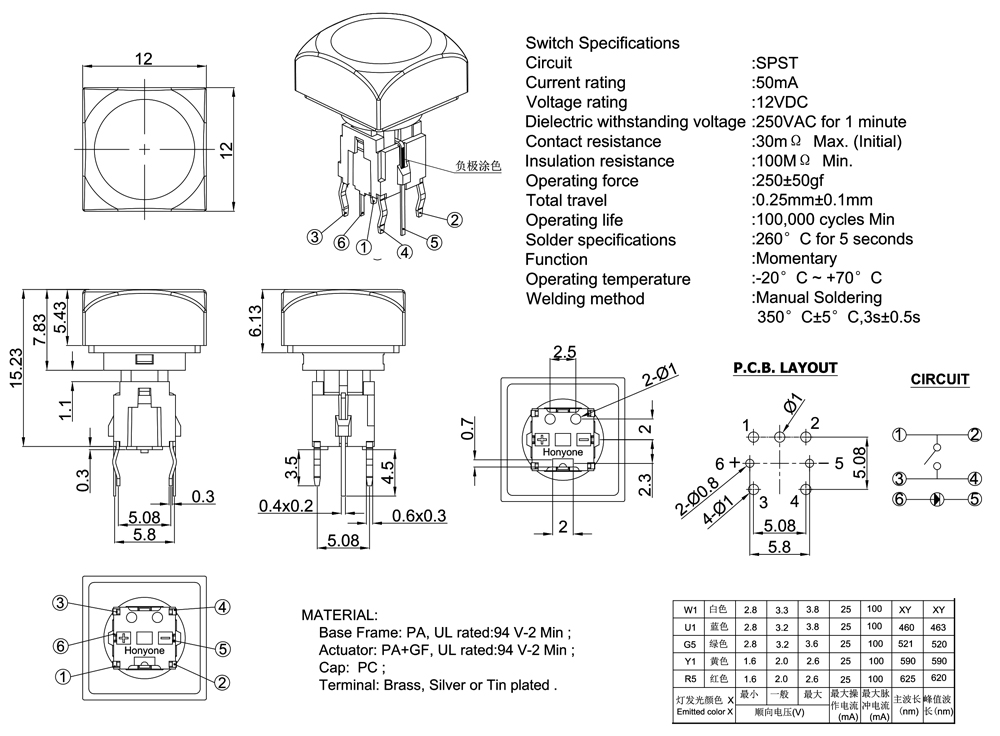

Switch Specifications
Circuit:SPST
Current rating:50mA
Voltage rating:12VDC
Dielectric withstanding voltage
:250VAC for 1 minute
Contact resistance:30Ω Max. (Initial)
Insulation resistance:100Ω Min
Operating force:250±50gf
Total travel:0.25mm±0.1mm
Operating life:100,000 cycles Min
Solder specifications:260°C for 5 seconds
Function:Momentary
Operating temperature:-20°C~ +70° C
Welding method:Manual Soldering
350° C+5° C,3s+0.5s
應用領域：
Audio / Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀器儀表
Telecommunication 電信，通信設備
Medical Equipmen 醫療設備
