產品規(guī)格：
Contact Rating: R- 0.4 VA max @ 20 V AC or DC
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
ESD Resistant Option: P2 insulating actuator
only: 9,000 VDC min. @ sea level,actuator to terminals.
Degree of Protection: IP67
Operating Temperature: -30°C to 85°C

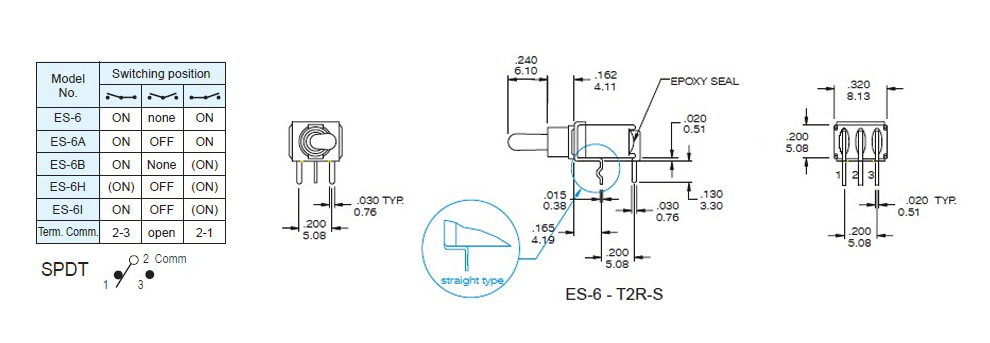

Horizon Right Angle type ESD protection available
Configuration: SPDT,DPDT
Function: On-On,On-Mom,On-Off-On,Mom-Off-Mom,
On-Off-Mom,On-On-On
