產(chǎn)品規(guī)格：
Contact Rating: 5A @125 VAC or 28 VDC (Q contact)
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C

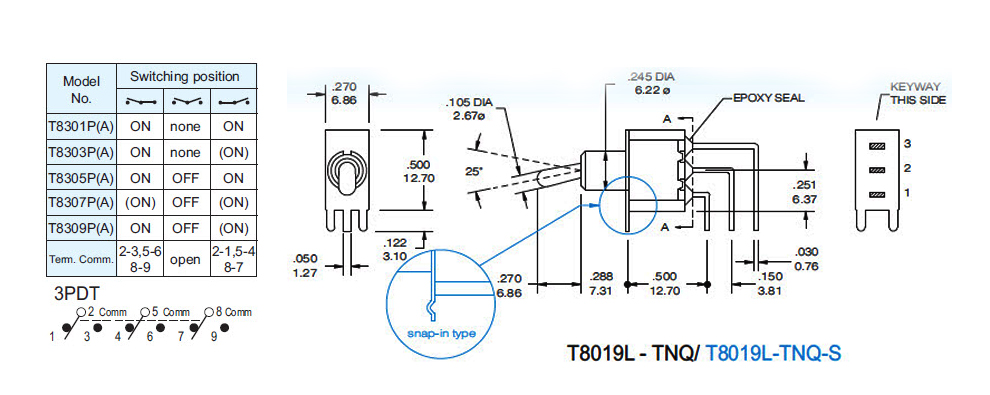

Vertical Right Angle type
Configuration: SP,DP,3P,4P
Fuction: On-On,On-Mom,On-Off-On,Mom-Off-Mom,
On-Off-Mom,On-On-On
CASE: diallyl phthalate ( DAP )
TOGGLE HANDLE: Copper alloy, chrome plated
