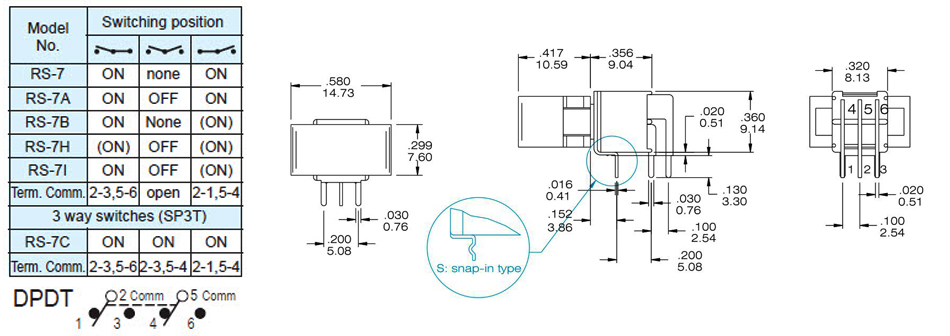

產品型號：RS-7-R1-2-Q
RS-7-R1-2-Q
產品規格：
Contact Rating: 3A @125 VAC or 28 VDC (Q terminal)
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
CASE: diallyl phthalate (DAP)(UL94V-0)
ACTUATOR: Nylon, black standard
BUSHING: Copper alloy, nickel plated
HOUSING: Stainless Steel
CONTACT & TERMINAL: Copper alloy, silver plated
SWITCH SUPPORT: Copper alloy, tin-plated
應用領域：
取暖器 heater
電風扇 Electric fan
監控?cái)z像頭 Surveillance camera
冰箱 refrigerator
空調air conditioning
轉向射燈 to shoot the light
洗衣機 washing machine
飲水機等家用電器 water dispenser
其他機械設備Other mechanical equipment
